SIKO MEASUREMENT SYSTEMS INDUSTRY 4.0

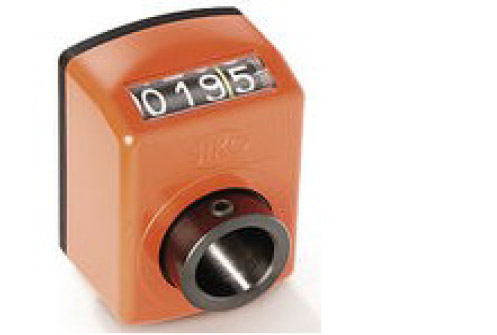

Mechanical Digital Position Indicator
- Hollow shaft
- Counter with 4/5 decades and fine reading
- Magnifying function for good readability
- Axial seal, dustproof and splash-proof

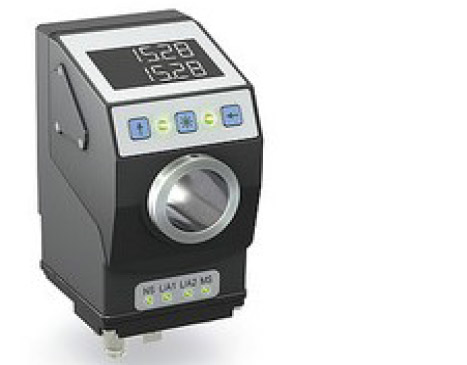

Electronic Digital Position Indicator
- Electronic position indicator with interface
- Stainless-steel hollow shaft ø20 mm, up to ø25.4 mm
- Integrated RS485 interface, CAN bus or IO-Link as an option
- Robust sensor technology unit thanks to magnetic scanning

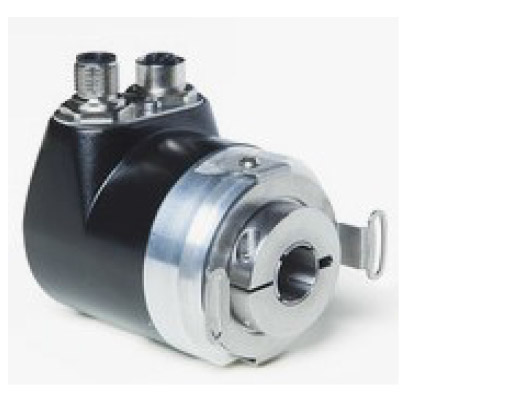

Hollow Rotary Encoder
- Interface CANopen Safety or CANopen redundant
- Suitable for applications up to Performance Level PLd
- Salt-spray resistant housing available
- High electro-magnetic compatibility
- IP67 protection category
- With PURE.MOBILE technology

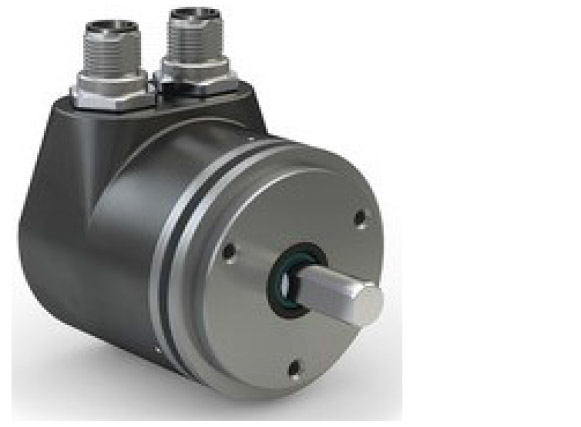

Solid Rotary Encoder
- Interface CANopen Safety or CANopen redundant
- Suitable for applications up to Performance Level PLd
- Salt-spray resistant housing available
- High electro-magnetic compatibility
- IP67 protection category
- With PURE.MOBILE technology

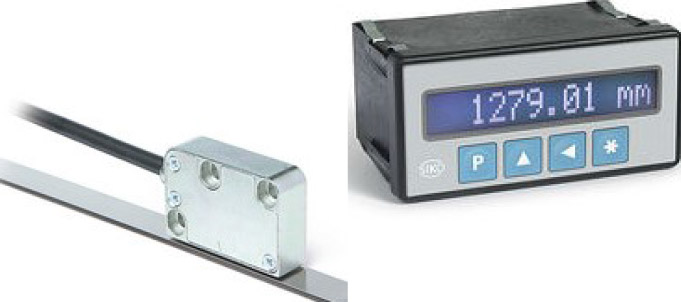

Linear Magnetic Sensor with Electronics Display
- Enhanced safety owing to independent output channels
- 2 magnetic sensors and 2 signal conditioners in one sensor head
- Display accuracy max. 10 μm
- Repeat accuracy max. ±0.01 mm
- Programmable actual-value memory
- Option: serial interface RS232/RS485
- With PURE.MOBILE technology

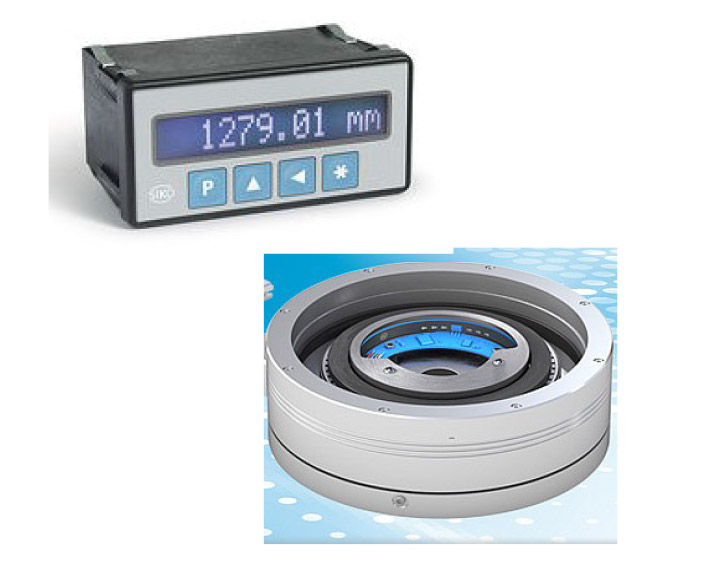

Rotary Magnetic Sensor with Electronics Display
- Enhanced safety owing to independent output channels
- 2 magnetic sensors and 2 signal conditioners in one sensor head
- Display accuracy max. 10 μm
- Repeat accuracy max. ±0.01 mm
- Programmable actual-value memory
- Option: serial interface RS232/RS485
- With PURE.MOBILE technology

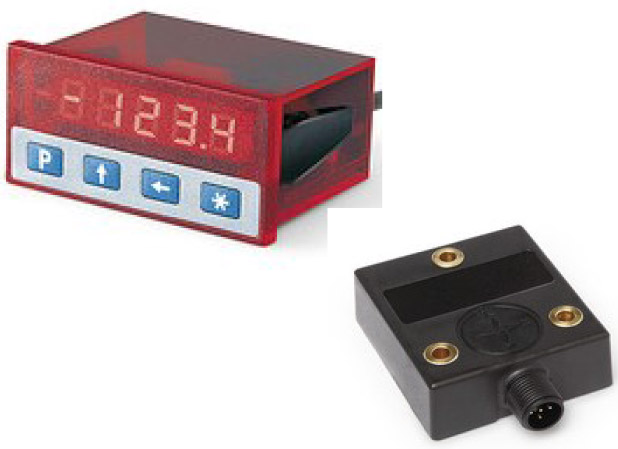

Inclinometer with Electronics Display
- 1/2-axis absolute inclinometer 0 ... 360°; biaxial absolute inclinometer -80° ... +80° und -80° ... +80°
- Accuracy ±0.1°; Resolution 0.01°
- RS232+U, RS232+I, CANopen interfaces
- IP69K, IP68 protection category
- Voltage, current and resistor inputs for length and angle measurement
- Free programming via front keyboard
- With PURE.MOBILE technology

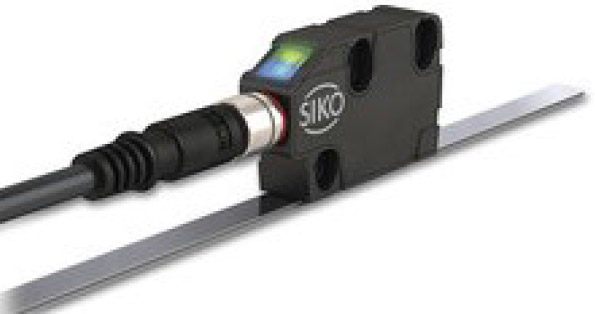

Ultra Compact Magnetic Sensor
- Max. resolution 1 μm
- Max. 200000 pulses/revolution in combination with MR500 or MBR500 (160 poles)
- Repeat accuracy ±0.005 mm
- Output circuit PP, TTL, LD (depending on the operating voltage)

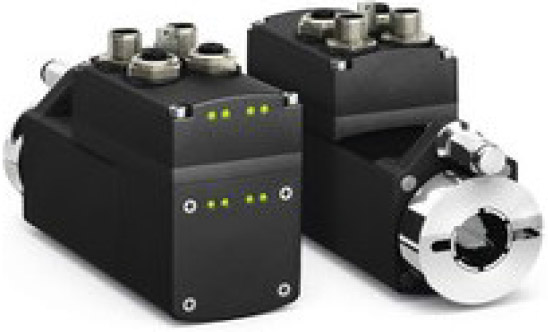

Actuator AG24 Fieldbus/IE
- Stainless steel hollow shaft up to max. ø20 mm, feather key groove at ø14 mm
- Brushless 160 W, 24 V DC motor with long service life
- Integrated absolute position encoder on the output shaft
- Integrated positioning controller

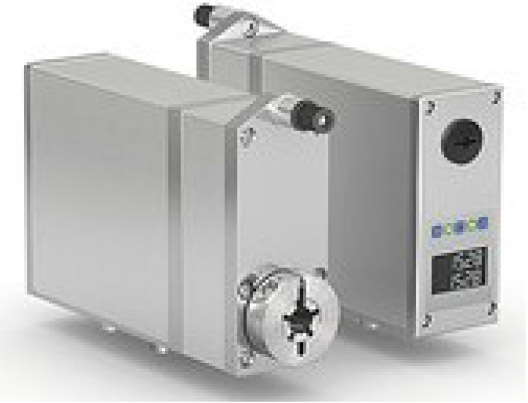

Actuator AG26 Fieldbus/IE
- compact dimensions, high power density
- High flexibility, high protection category
- Brushless EC motor with a long service life
- solid absolute sensor, magnetic sensing technology
